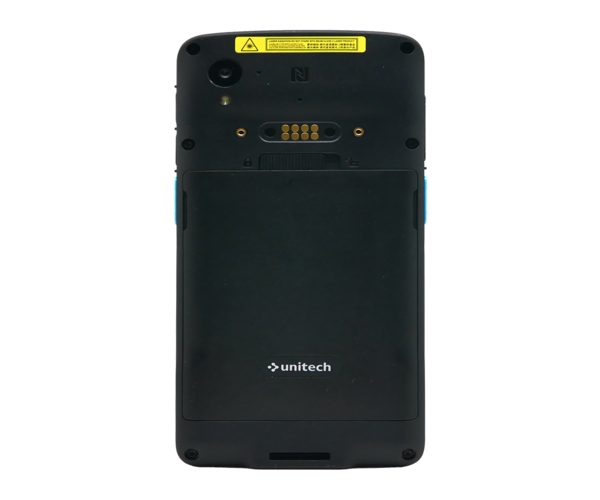

Unitech EA660 GSM ( 5G) El Terminali

Operation System OSAndroid 13 (upgradable to Android 15 & 17) Support Google ARcore GMS certifiedGMS certified Android EnterpriseAER certified CPUQualcomm Snapdragon™ 4490 Processor, 64bits, Octa Cores up to 2.4GHz MemoryRAM 6GB Flash 128GB UFS Flash SecuritySupports Secure Boot and Verified Boot Languages supportEnglish, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages OthersInput Chinese/ English Supports handwriting and soft keyboard Display Screen Size6", 18:9 Full-HD+ (2160X1080), color screen, High sunlight visibility- LCD backlight up to 630nits Touch PanelCorning® Gorilla® Glass Victus®, Multi-Touch User Interface with Capacitive, stylus (5mm) , glove mode (3mm), wet-finger Compatibility Buttons / Keypad Buttons / Keypad5 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button Camera Camera5 MP Front camera, 16 MP Rear with auto-focus function and Flash Light Indicator Type TypeLED, Speaker, Vibrator Symbologies 1D BarcodesUPC/EAN, GS1-128 , Code128, Code 39, Code 93, , Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar 2D BarcodesPDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GS1 Composite PostalUS Postnet, US Planet, UK Postal, Japanese Postal, Australian Postal, Netherlands (KIX)/ Dutch Postal, USPS 4CB/ One Code/ Intelligent Mail/ UPU FICS Postal OCROCR-A, OCR-B, E13B (MICR) RFID HF RFIDSupport HF/NFC Frequency 13.56Mhz Support ISO14443-4 (Type A, Type B), ISO15693, Mifare, Felica(ISO/IEC18092) compliance I/O Interfaces USBUSB 3.1 (type-C) support USB OTG, DRP, DRD, Type C Ethernet/USB-Host via cradle OTGYes, over USB Type-C POGO PINPogoPin backside: Support Gun-grip, UHF reader PogoPin bottom: Charging via cradle SIM Slot1 eSIM+1 nano SIM Expansion SlotMicroSD, up to 1TB AudioOne 1.5W output speaker with SmartPA (95 dB at 10cm) *103 dB @ 2W speakers as optional, One receiver, Dual-Microphone support noise cancellation Power Source Main battery3.87V, 5000mAh UL certified smart battery Support Warm SWAP Communication Bluetooth®Bluetooth® 5.2 WLANWi-Fi 6E (2.4GHz & 5 GHz & 6 GHz) IEEE 802.11 a/b/g/n/ac/ax/d/e/h/i/k/r/v (MU-MIMO 2X2) Supports Dual Band Simultaneous (DBS) and Fast Roaming (802.11r with PMKID caching) Security WPA3, WPA2, WPA, WEP, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, Wi-Fi CERTIFIED™ WWAN5G NR: n1, n2, n3, n5, n7, n8, n12, n20, n28, n34, n38, n39, n40, n41, n48, n66, n77, n78, n79 4G LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B19, B20, B28, B66 LTE (TDD): B34, B38, B39, B40, B41, B48 3G WCDMA/UMTS/HSPA+: B1 (2100MHz), B2 (1900MHz), B4 (1700MHz), B5 (850MHz), B8 (900MHz) 2G GSM/GPRS/EDGE: B2 (PCS1900), B3 (DCS1800), B5 (GSM850), B8 (GSM900) Support Data, SMS and Voice capabilities *n48& B48 for CBRS GPSGPS, GLONASS, Gallileo, BeiDou, QZSS, supports L1+L5, a-GPS, XTRA SensorsGyroscope,G-sensor, E-Compass,Light & Proximity Sensor Software MDM SoftwareSOTI, VMware and MoboLink Enclosure Dimensions ( W x H x D )162.9mm x 77mm x 14.9mm Weight270g ± 1.5% (with battery)* *The weight will vary depending on the configuration. Durability Drop Specification1.5m drops to concrete per MIL-STD-810H 1.8m with boot case SealingIP65 & IP68 Tumble test0.5m tumbles for 300 cycles / 600 drops for EA660 1m tumbles for 500 cycles / 1000 drops for EA660 with boot case Environmental Operating temperature-20°C to 55°C Storage temperature-40°C to 70°C (without battery) Charging temperature0°C to 45°C Relative Humidity5% ~ 95% (Non-Condensing) Accessories Accessories■ USB 3.0 type-C cable for terminal & 1-slot cradle (PN#1550-905908G) ■ Quick charge Adaptor with US plug for terminal & 1-slot cradle (PN#1010-900073G) ■ Quick charge Adaptor with EU plug for terminal & 1-slot cradle (PN#1010-900074G) ■ hand strap (PN#5400-900052G) ■ Boot case (PN#3210-900040G) ■ 9H glass screen protector ( PN#5400-900062G, 10pcs with Packing ) ■ Battery 3.87V 5000mAh (PN#1400-900074G) ■ Stylus ( 5.5mm #386534G) ■ Coiled strap (PN# 383642G) ■ Gun grip (PN# 5500-900108G) ■ Wrist Lanyard (PN#385892G) ■ RP902 Bluetooth UHF RFID Pocket Reader (PN# RP902-33E8S0G (EU) / RP902-43A8S0G (US) / RP902-43F8S0G (JP) ■ Single Slot Charging Cradle *(PN#5000-900129G) ■ Single Slot USB Cradle *(PN#5000-900130G) ■ Single Slot Ethernet Cradle *(PN#5000-900131G) * Use USB Cable & Power Adapter from EA660 ■ 5-Slot Terminal Charging Cradle(PSU Only) (PN#5000-900132G) ■ 5-Slot Ethernet Cradle(PSU Only) (PN#5000-900134G) ■ 4-Terminal+ 4-battery Charging Cradle(PSU Only) (PN#5000-900133G) ■ 4-slot battery charger(PSU Only) (PN#5100-900037G) ■ Power supply for Multi-Slot Cradle (PN#1010-900068G) ■ 3-Pin Power Cord (UK) PN#1550-602689G ■ 3-Pin Power Cord(EU) PN#1550-602333G ■ 3-Pin Power Cord(US) PN#1010-601551G ■ EA660 docking station (PSU Only) (PN#5000-900142G) ■ 5V/6A Power supply for Docking station (PN#1010-900043G) ■ Vehicle cradle (PN#5000-66C0001)
